01 / 序章：通往未知的场域序曲
Prologue: Entering the Unknown

在五金博物馆的规划初期，团队便在核心区域预留了约 1,000 平方米的弹性空间，以应对品牌研发的快速迭代。随着悍高新品序列的爆发式增长，这片空间顺理成章地转型为品牌的新品发布区。这里不仅是空间新旧交替的节点，更是整个空间叙事的序章。通过衔接处的门禁系统，展陈动线实现了从公共展览到特定发布空间的有序过渡。这里不仅是品牌技术演进的载体，更是我们对悍高品牌精神的视觉映射——一个充满精密秩序与未来感的场域。

▼项目视频，Video ©WM Studio

During the early planning of the Hardware Museum, the team set aside roughly 1,000 square meters at the heart of the project. The space was designed to remain flexible, ready to accommodate the brand’s fast-moving research and development needs. As HIGOLD’s new product lines grew rapidly, the area naturally became a dedicated launch space. More than a point of transition between old and new programs, it sets the tone for the spatial narrative that follows. Beyond the access-controlled threshold, the public exhibition gives way to a dedicated launch space. Here, the brand’s technological evolution takes physical form. The space translates HIGOLD’s identity into an atmosphere of precision, order, and quiet futurism.

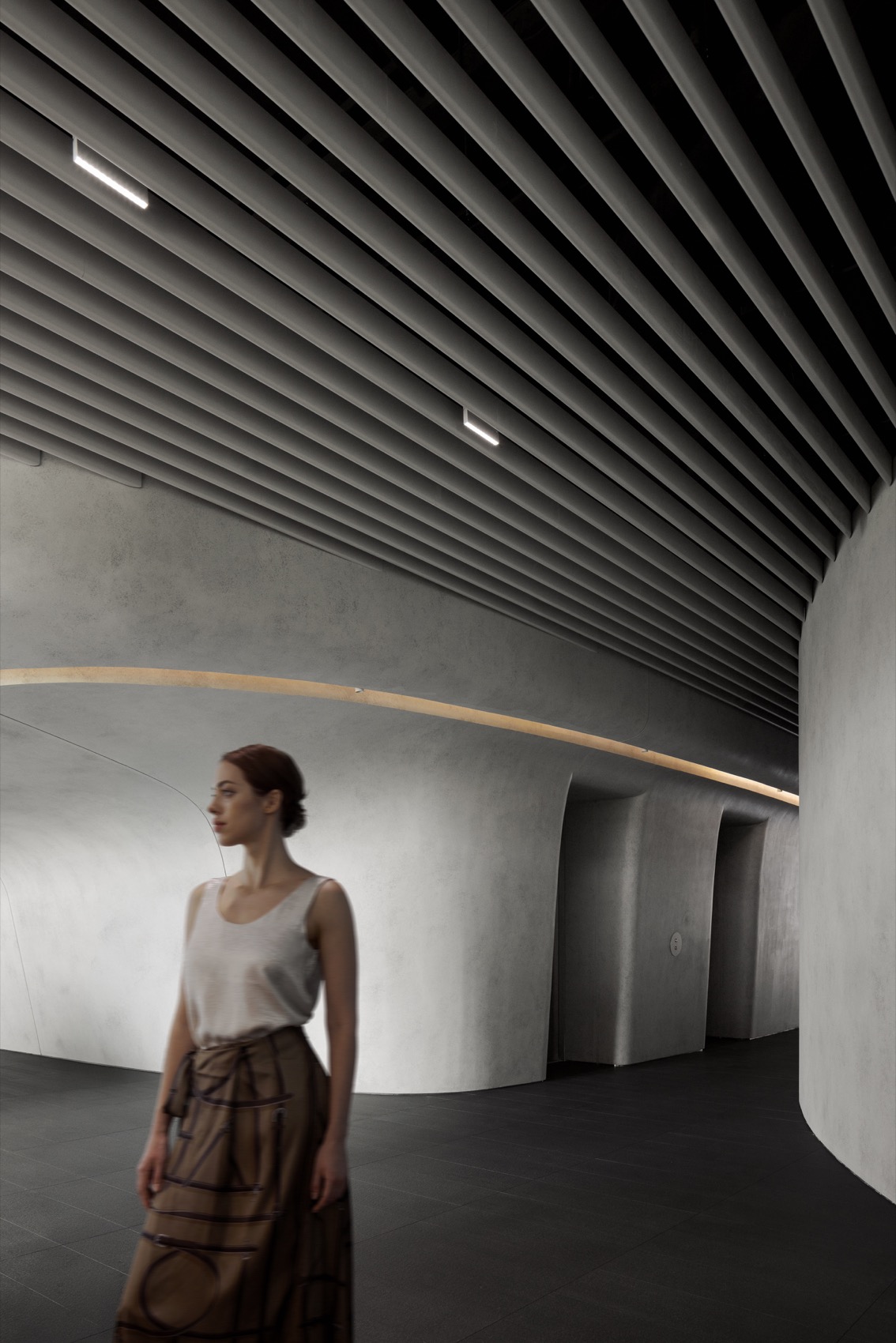

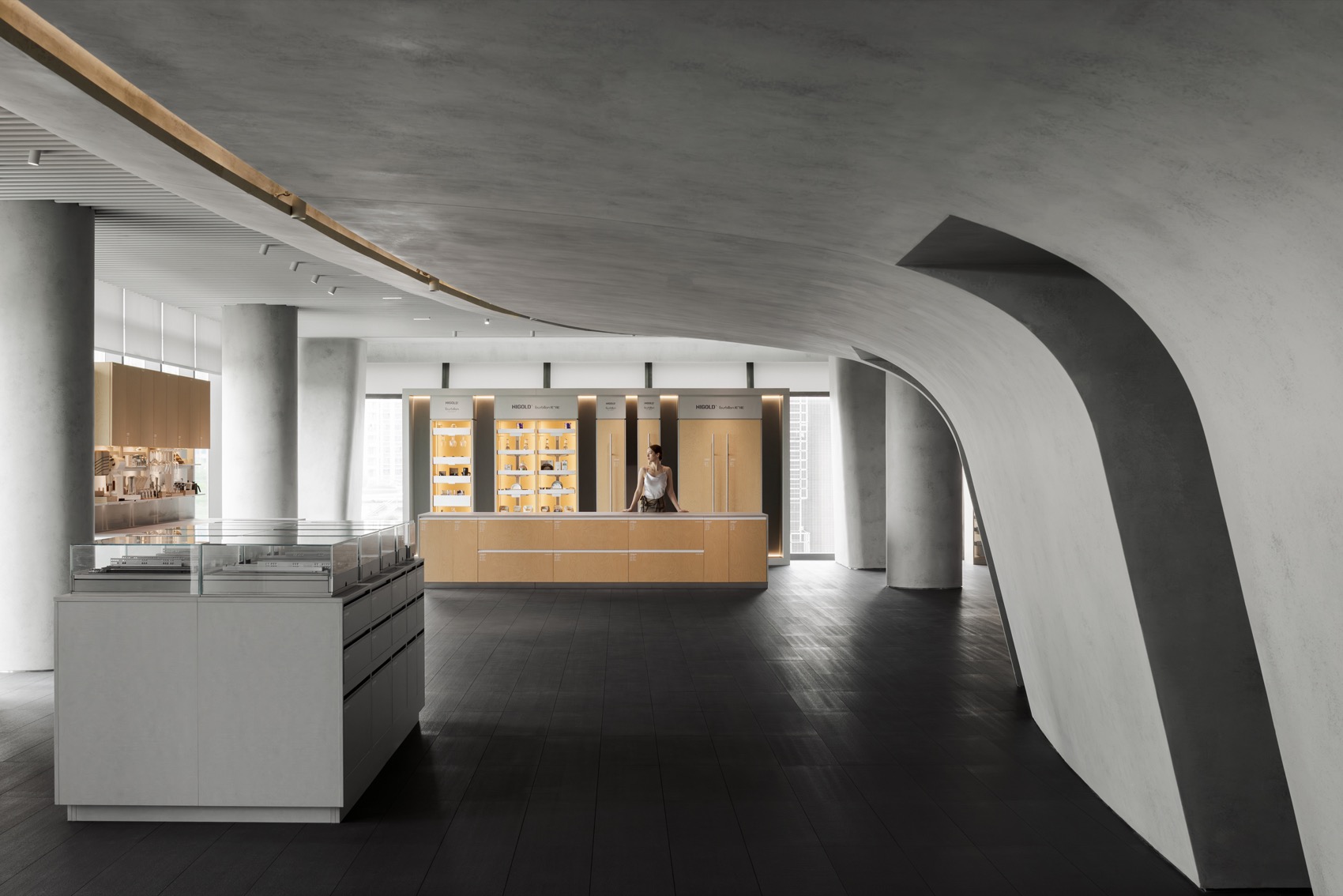

▼柔性曲面构筑未来感场域，Fluid Surfaces Creating a Futuristic Environment ©WM Studio

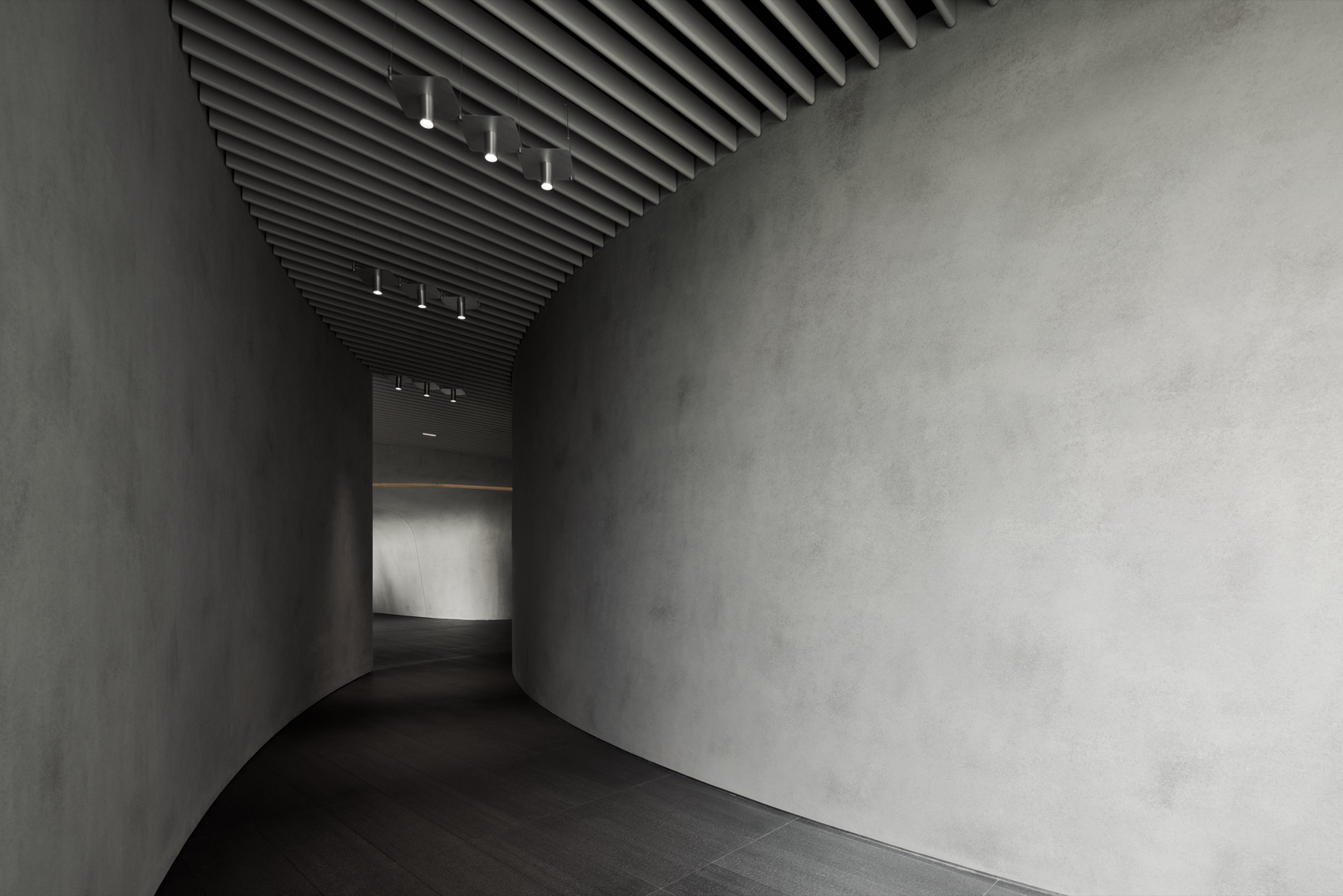

步入环形走道，空间内的光环境被刻意收敛与控制，由此引导观者的情绪逐渐聚焦。脚下铺设的深色黑灰色花岗岩，采用小规格长条状进行离缝铺贴，这种极具阵列感的逻辑，为整个展厅锚定了坚固、冷峻且历久弥新的基调。在入口端头处，几块原生态岩石以粗犷的姿态叠放，光影在硬朗的表面刻画出分明的明暗关系，营造出一座具有纪念碑感与雕塑感的未来场域。

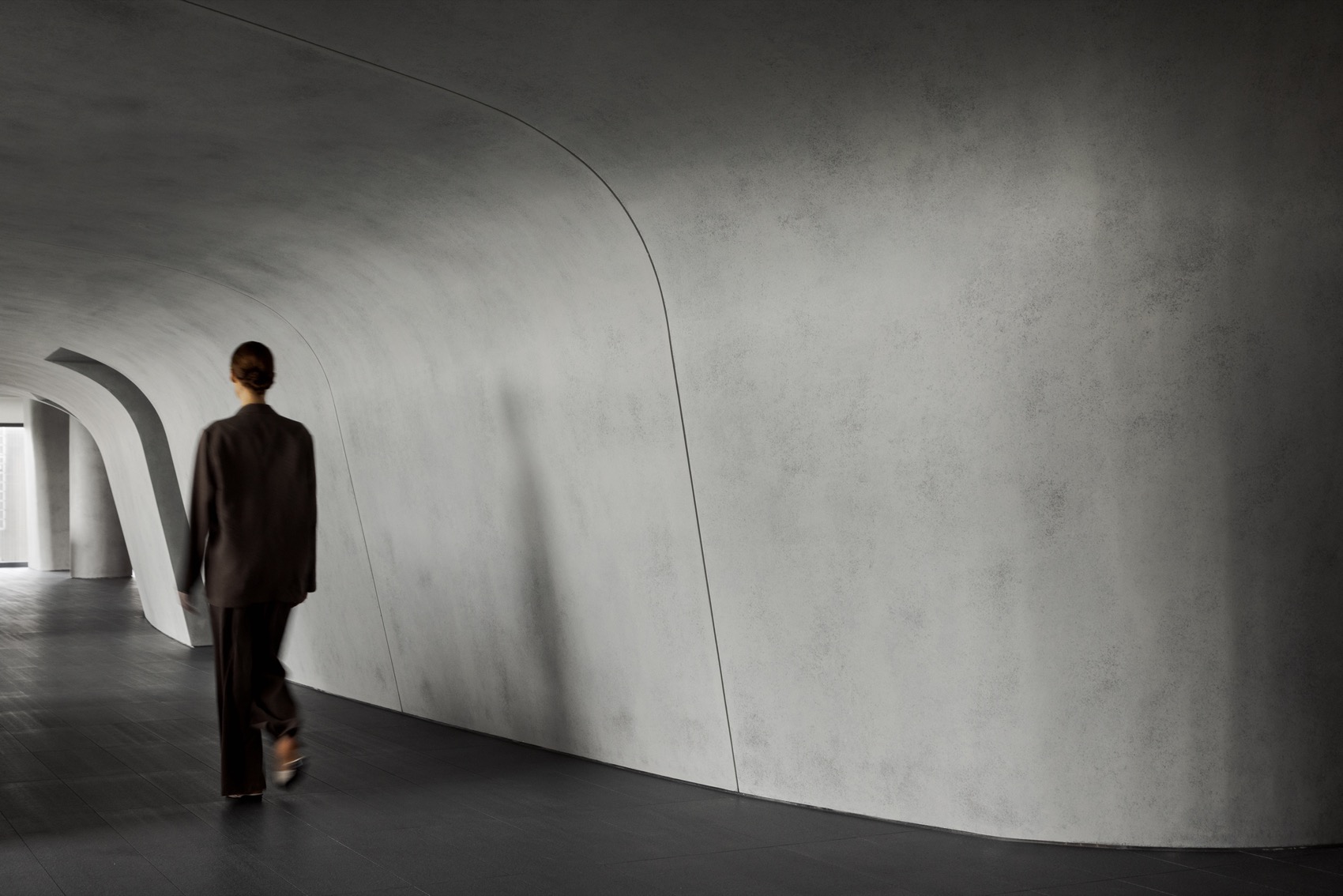

As visitors enter the circular corridor, the lighting narrows and softens, drawing attention inward. Underfoot, dark black-gray granite is laid in small-format strips with open joints. The precise, array-like rhythm grounds the hall in a sense of weight, restraint, and permanence. At the entrance, raw stones are stacked in a rough formation. Light and shadow cut across their hard surfaces, giving the space a sculptural presence with a distinctly monumental force.

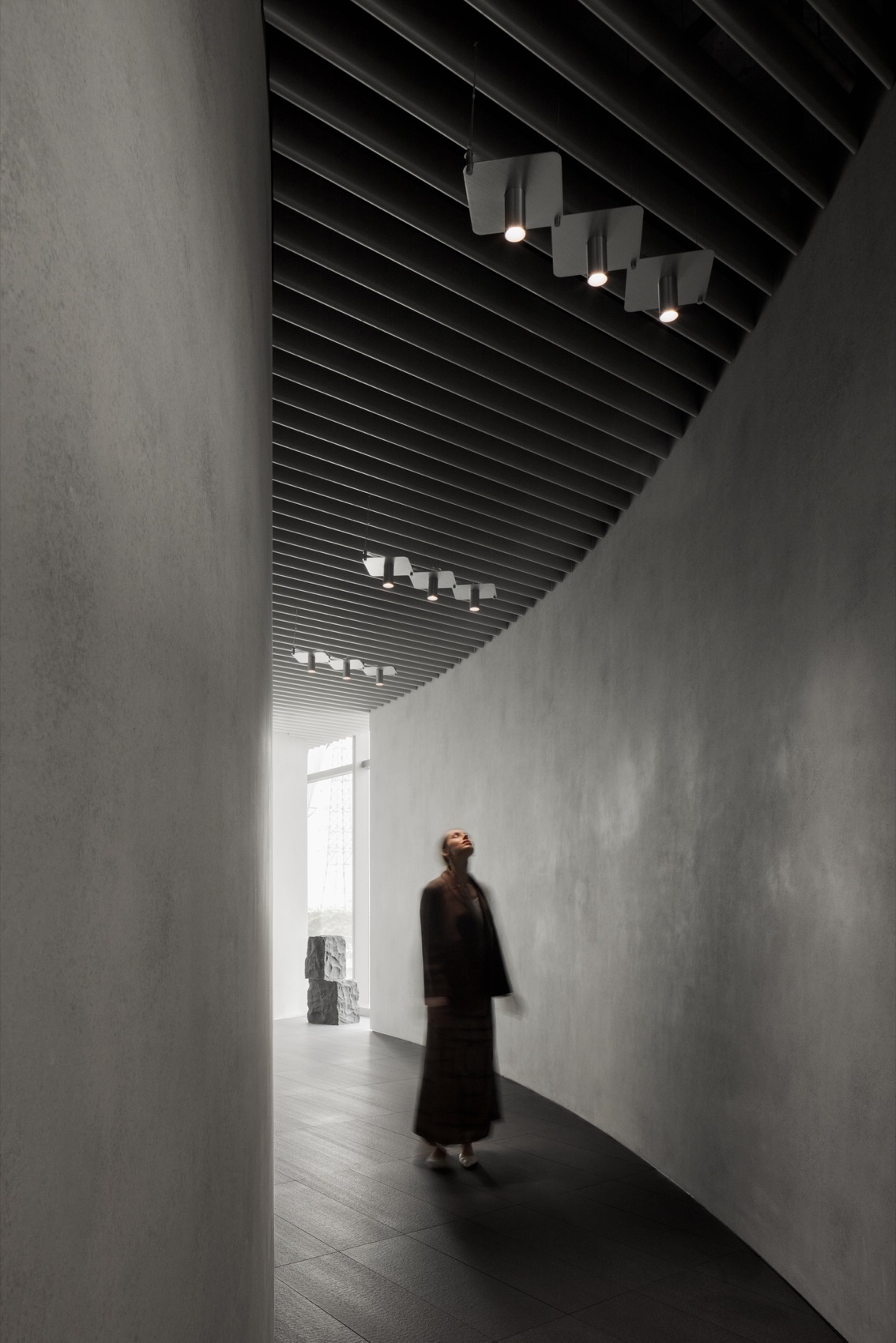

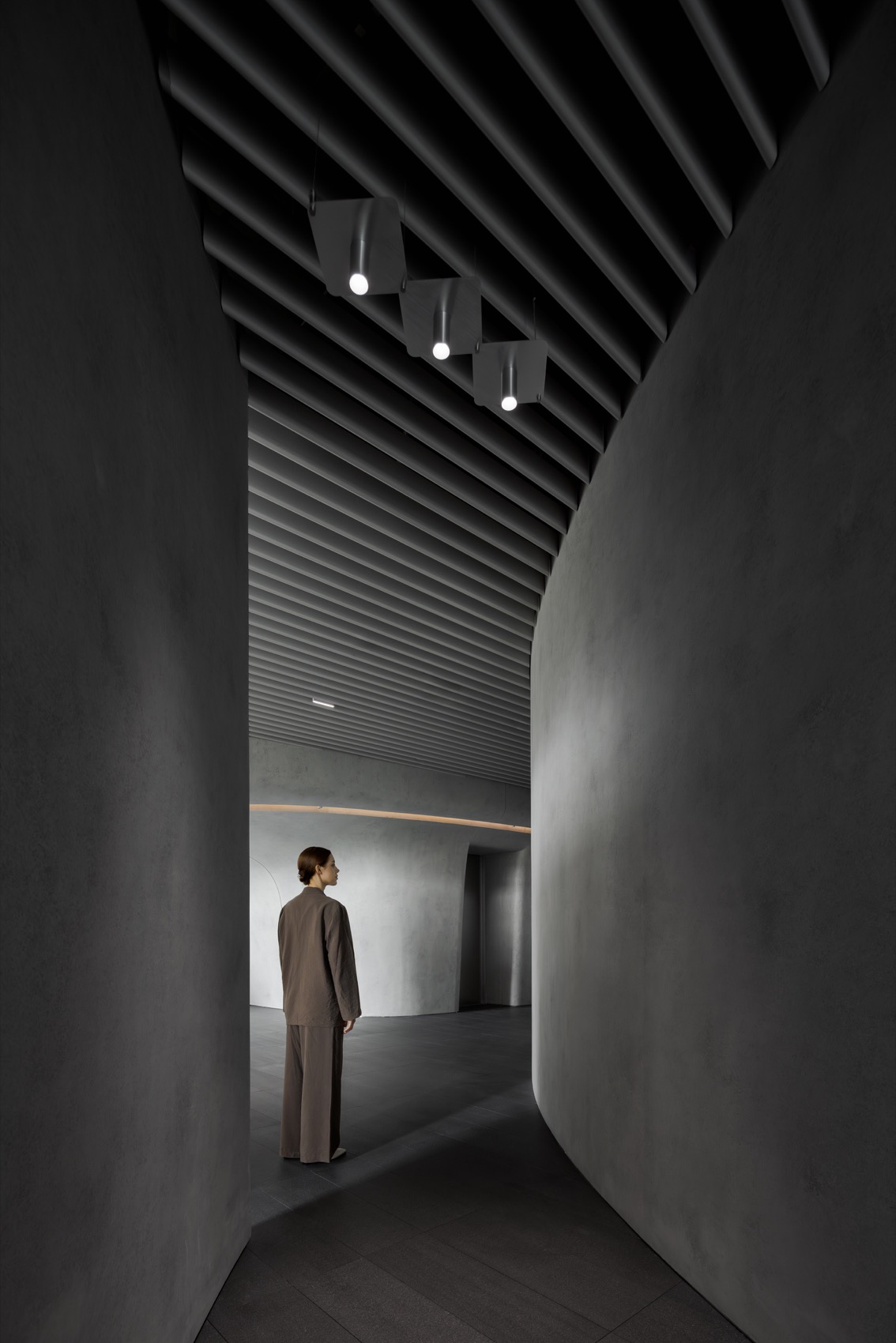

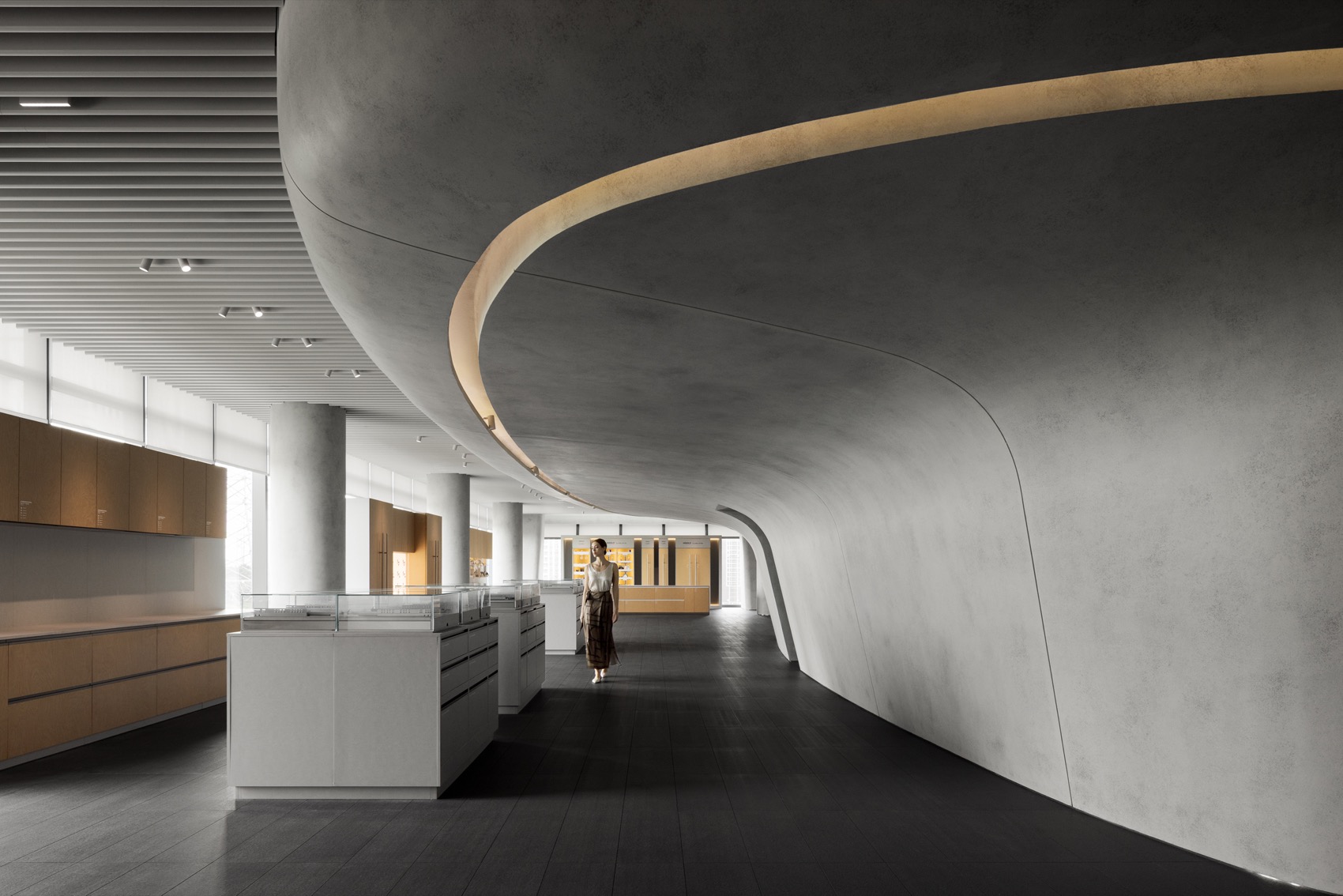

▼环形核心筒与展陈动线，Circular Core Volume and Exhibition Route ©WM Studio

02 / 核心：生长张力
Core: A Tension That Grows Outward

展厅的叙事由序厅开启，整体动线围绕中心核心筒展开。针对产品更新周期短、展陈需高度灵活的诉求，我们采取了“散落式”布局——展台与展柜刻意与幕墙及结构柱体脱离，使产品如博物馆展品般散落在空间各处。这种策略不仅赋予了展陈极大的物理自由度，也让空间界面更为通透、立体。

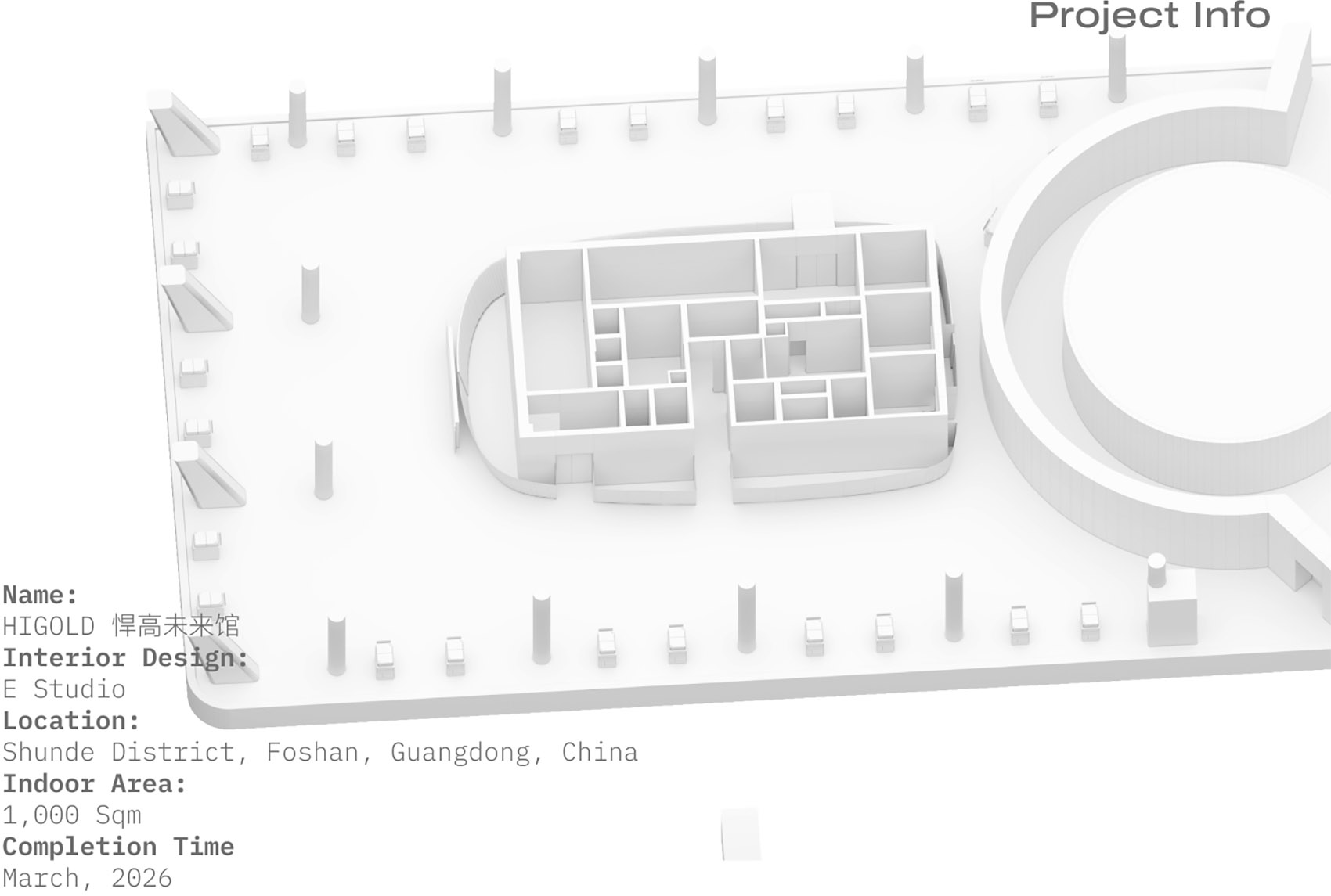

▼场地轴测图，Axonometric diagram © E Studio

The exhibition begins in the foyer and unfolds around the central core. To accommodate short product cycles and frequent display changes, we adopted a scattered layout. Plinths and cabinets are deliberately detached from the curtain wall and structural columns, allowing the products to appear throughout the space like museum artifacts. This gives the exhibition greater physical freedom while keeping the surrounding space open and layered.

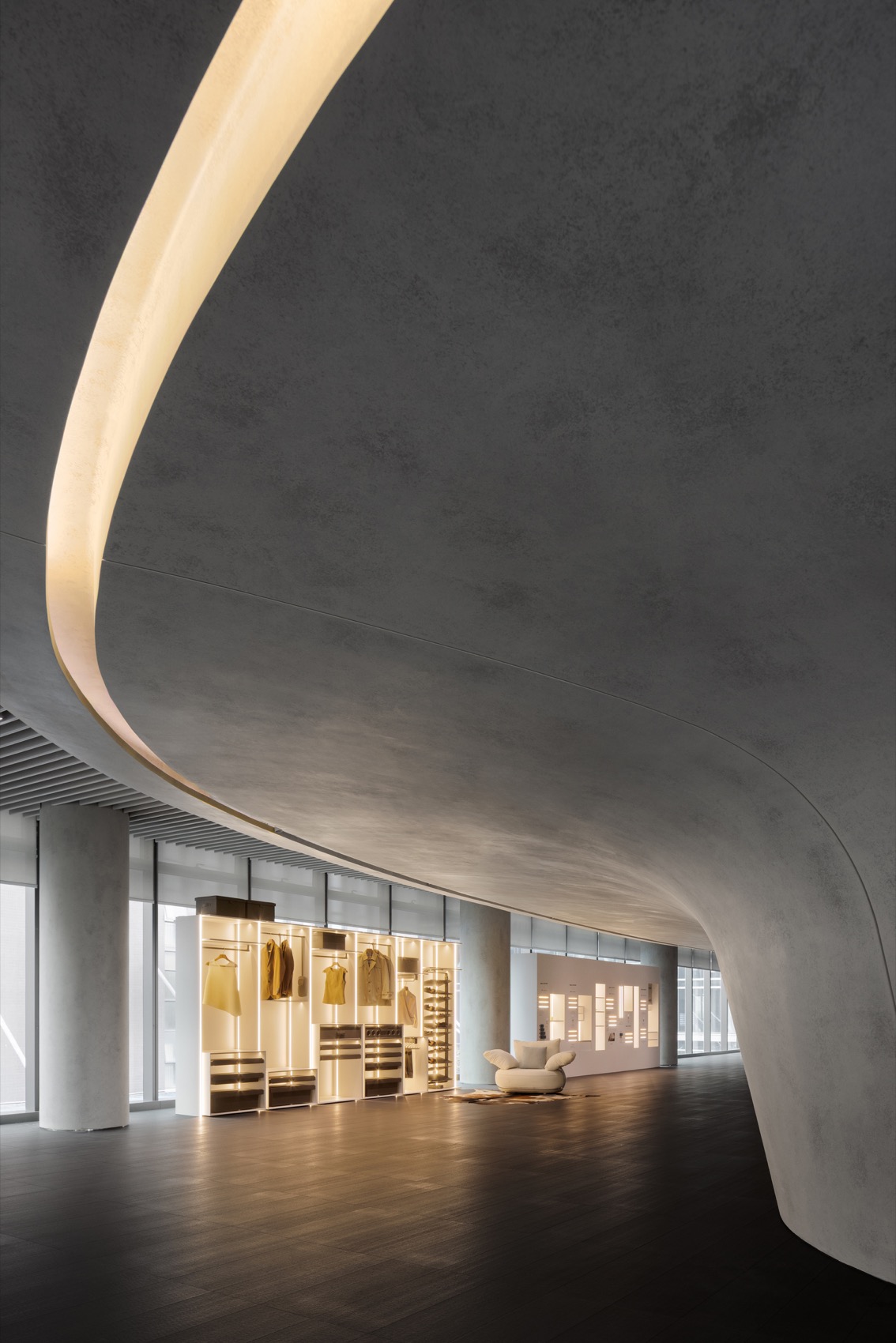

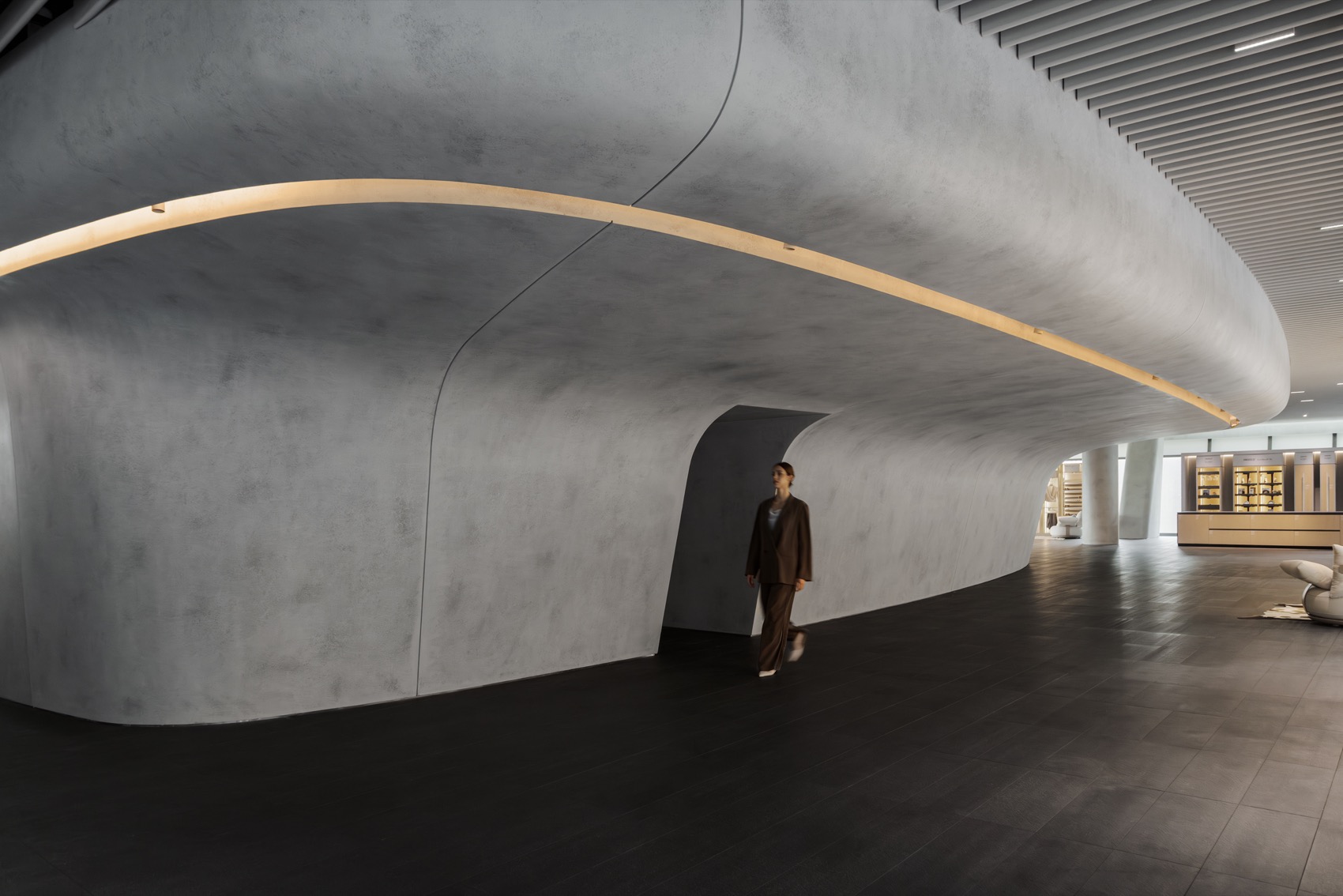

▼悬浮光带勾勒曲面装置边界，

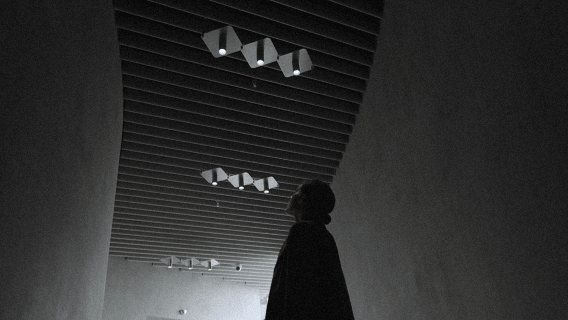

Floating Light Ribbon Defining the Curved Installation Edge ©WM Studio

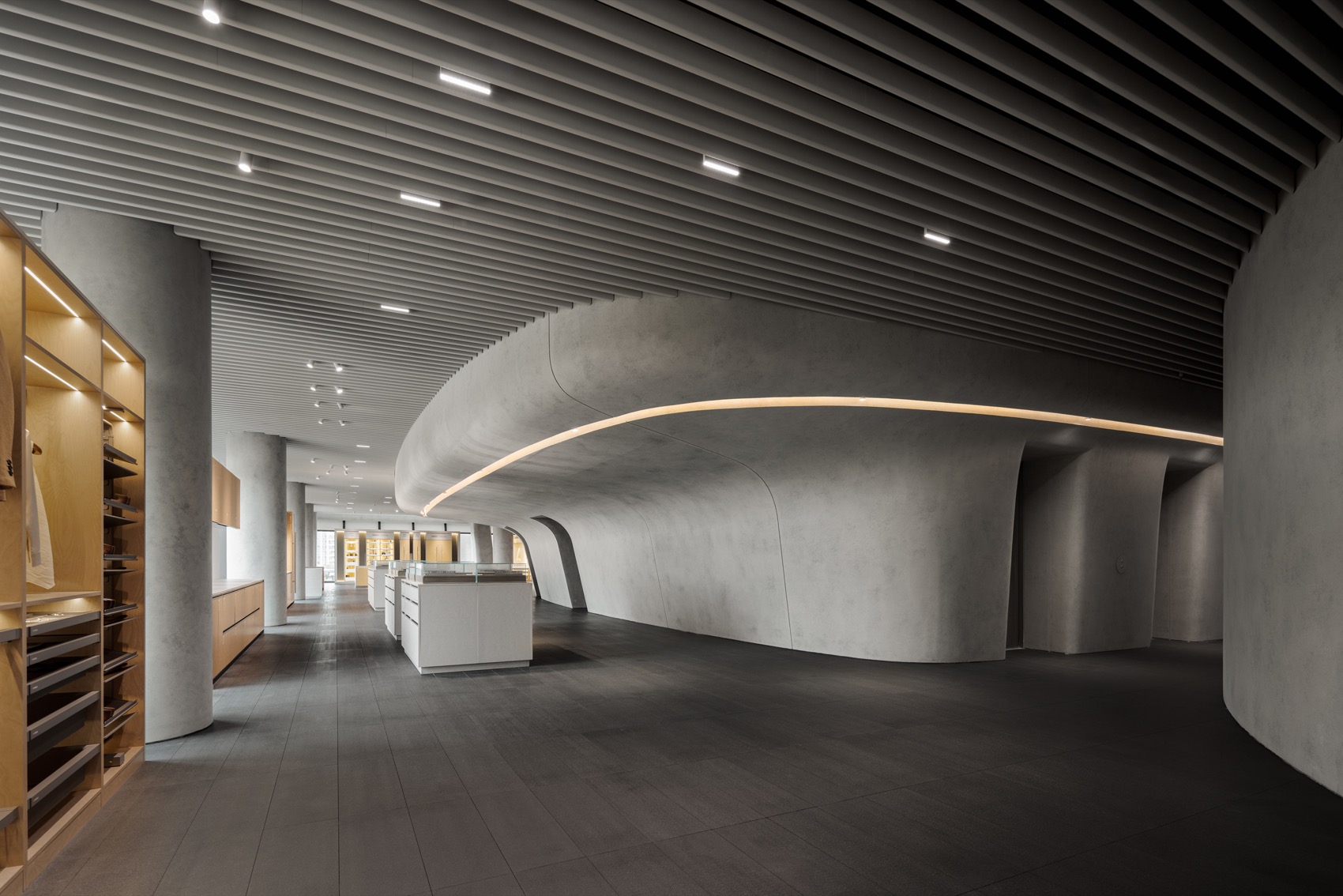

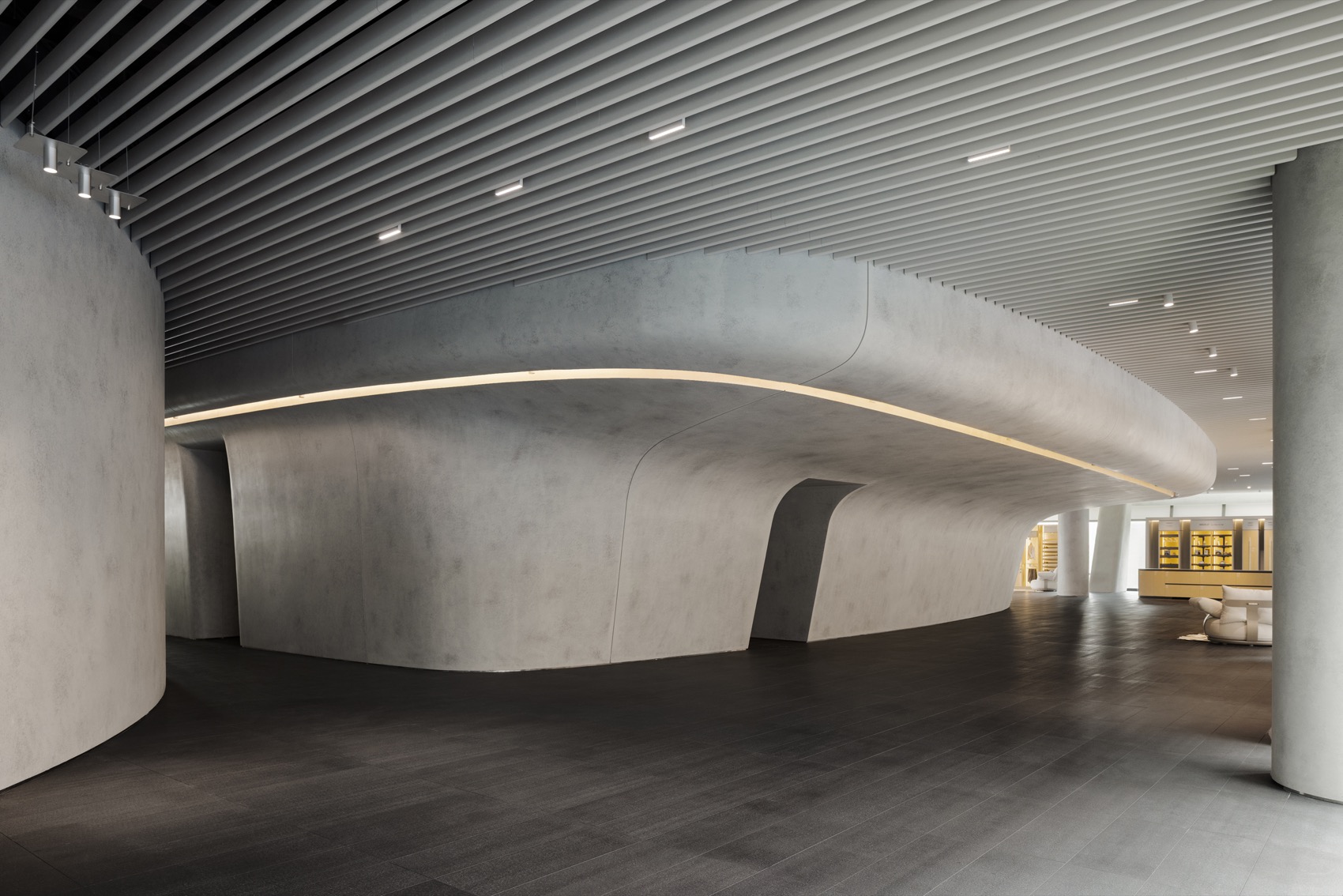

▼流动几何塑造空间张力，
Flowing Geometry Creating Spatial Tension ©WM Studio

为了在不干扰自然采光的前提下确立强有力的第一印象，我们将设计的核心锚点定位于唯一的大体量结构——中心核心筒。在形态塑造上，我们试图通过“扭动”、“旋转”与“不规则”的几何语言，在理性逻辑下寻找绝对对称与不规则的平衡感。这一巨构装置不仅是空间的视觉焦点，更产生了一种向外爆发的“生长张力”。我们将复杂的机电设备消隐于这一动态体块之中，并最大限度地释放了周边空间的净高。

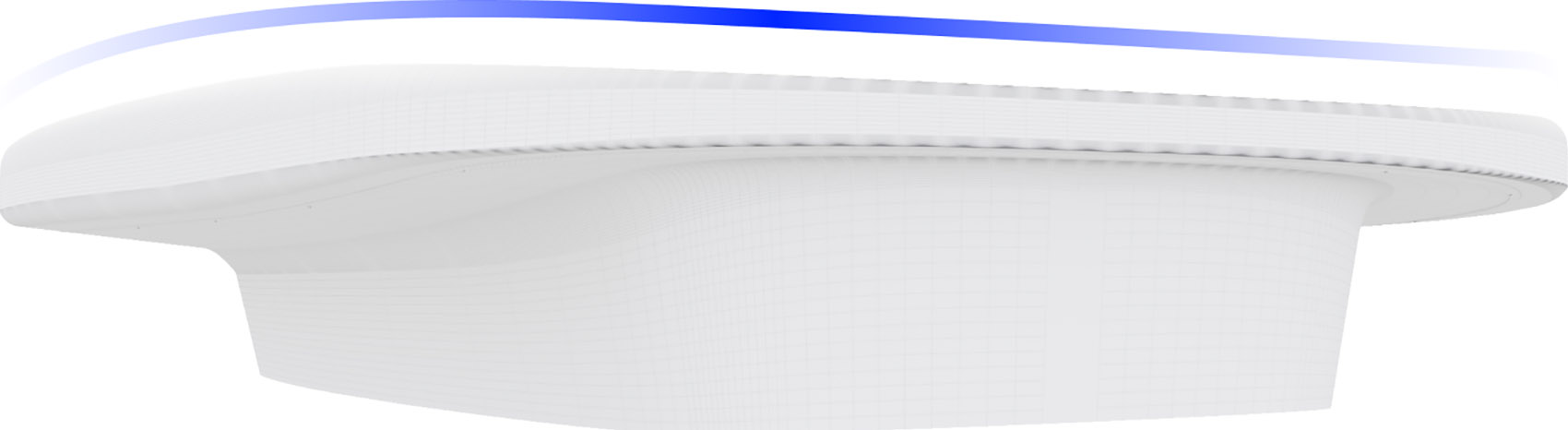

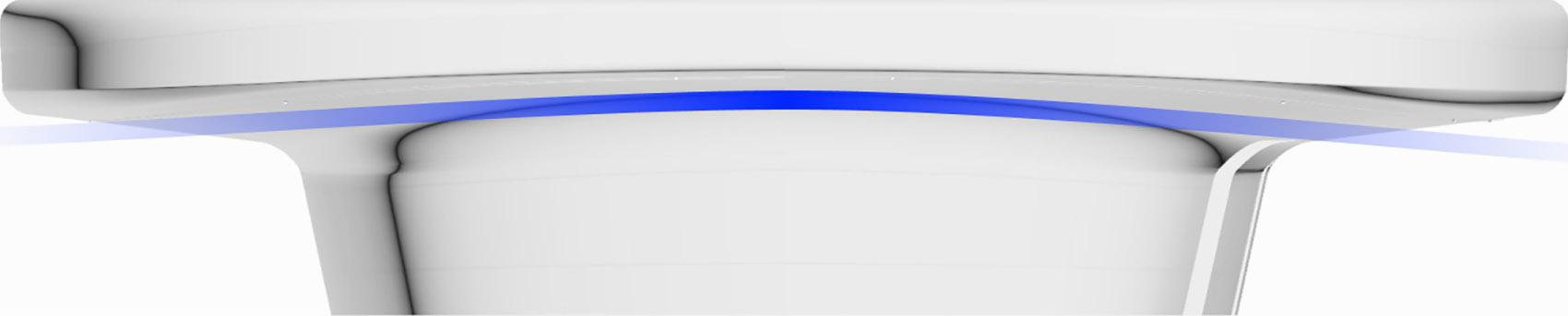

▼形体分析图，Shape analysis diagram

To create a strong first impression without interrupting the natural light, we turned to the central core. As the only large structural volume in the space, it became the project’s main anchor. Its form is shaped through twisting, rotation, and irregular geometry, seeking a careful balance between absolute symmetry and more fluid irregularity. This monumental installation is more than the visual focus of the space. It creates the feeling of force pushing outward, a tension that seems to grow from within. Complex mechanical and electrical systems are hidden inside the dynamic volume. This frees the surrounding areas to retain as much clear height as possible.

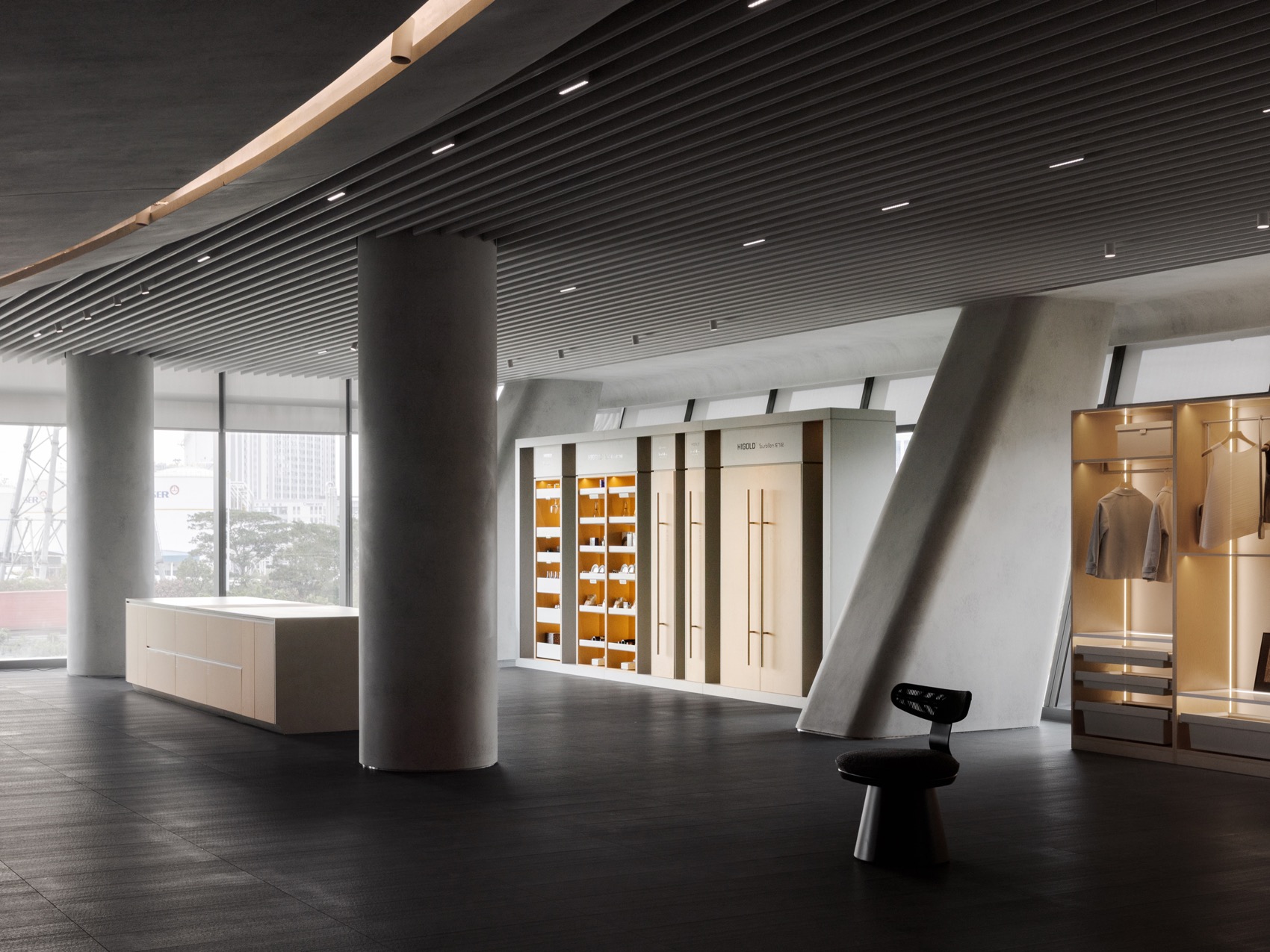

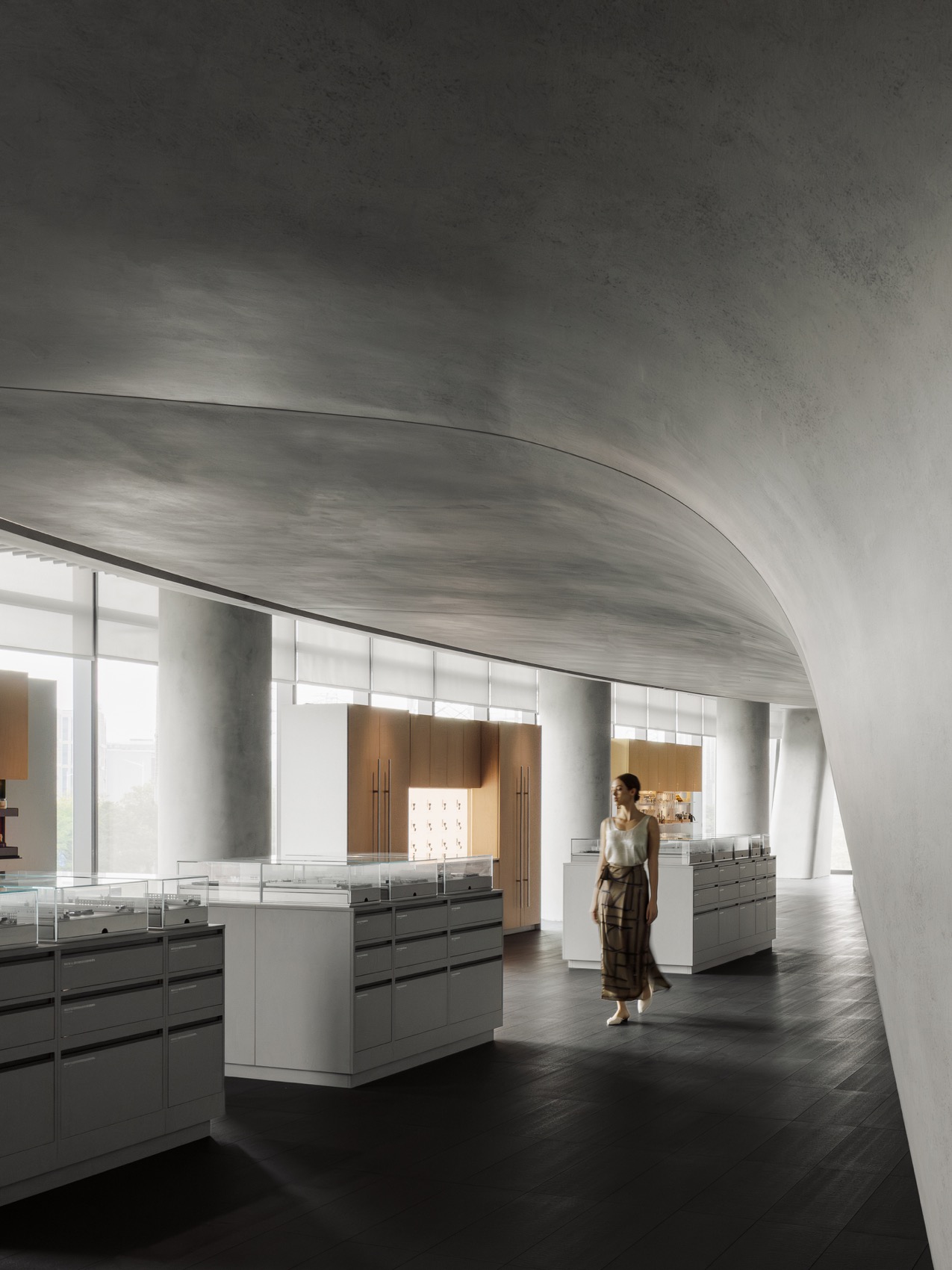

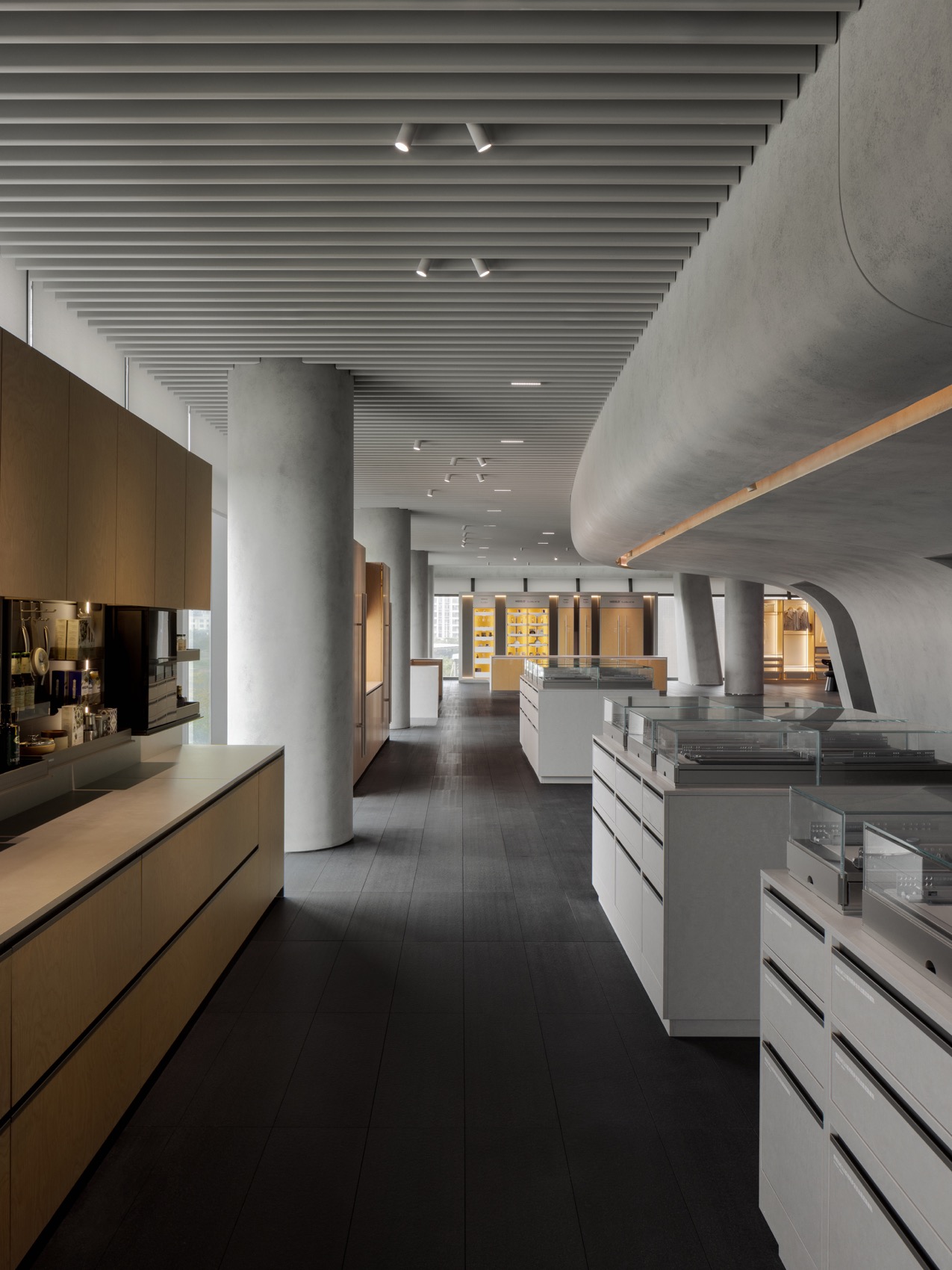

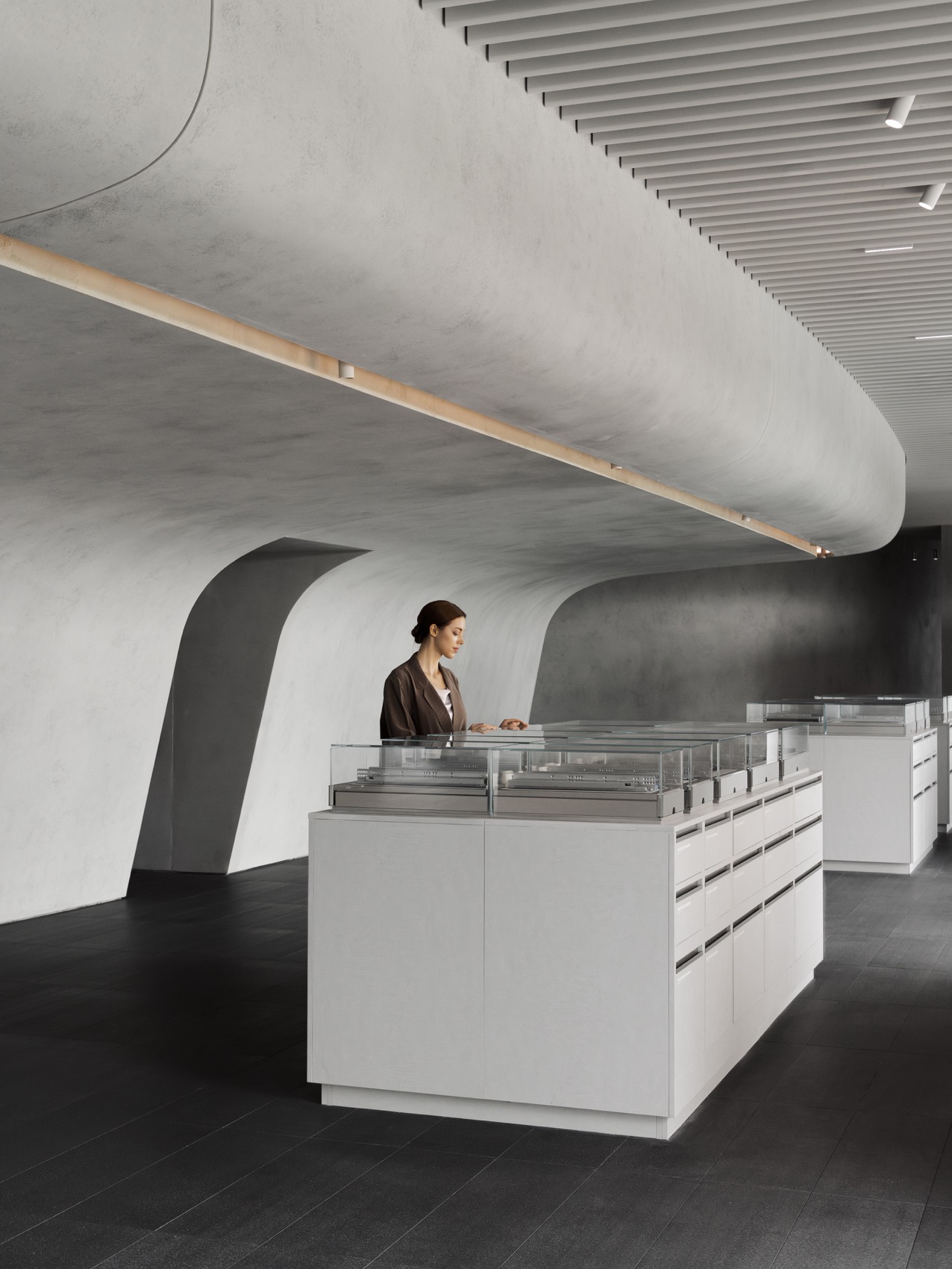

▼展陈岛台散落于开放空间中，Display Islands Scattered Within an Open Plan ©WM Studio

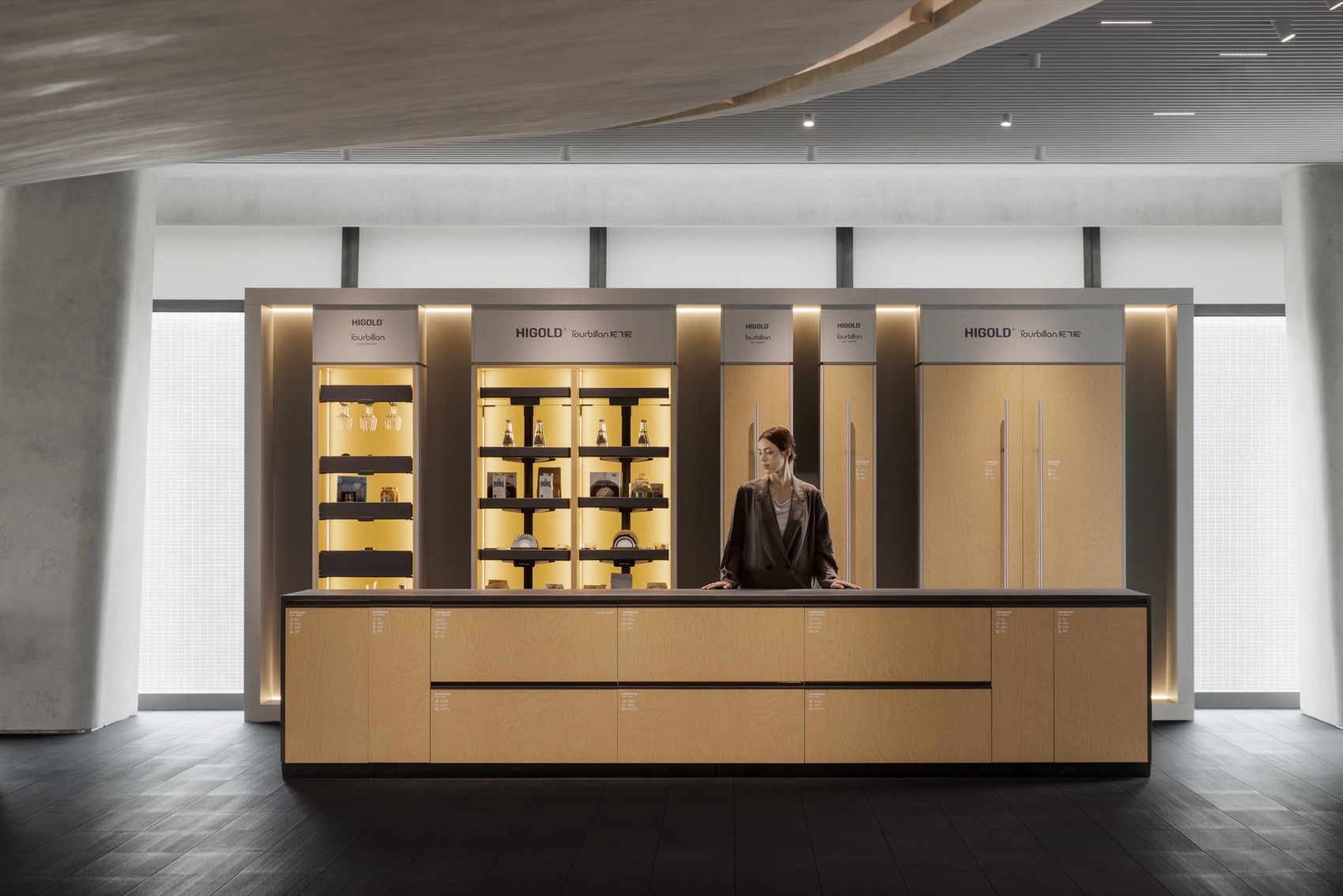

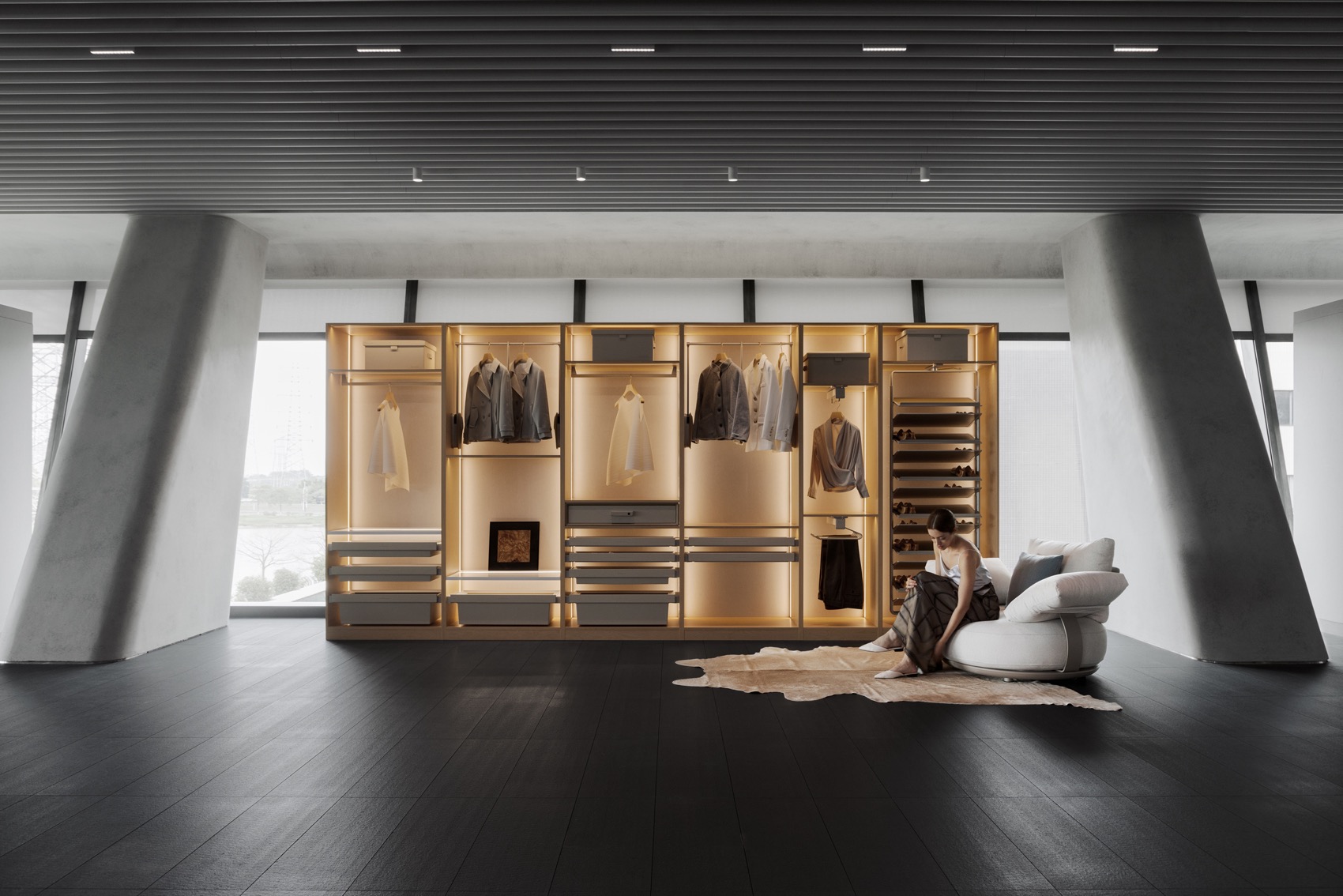

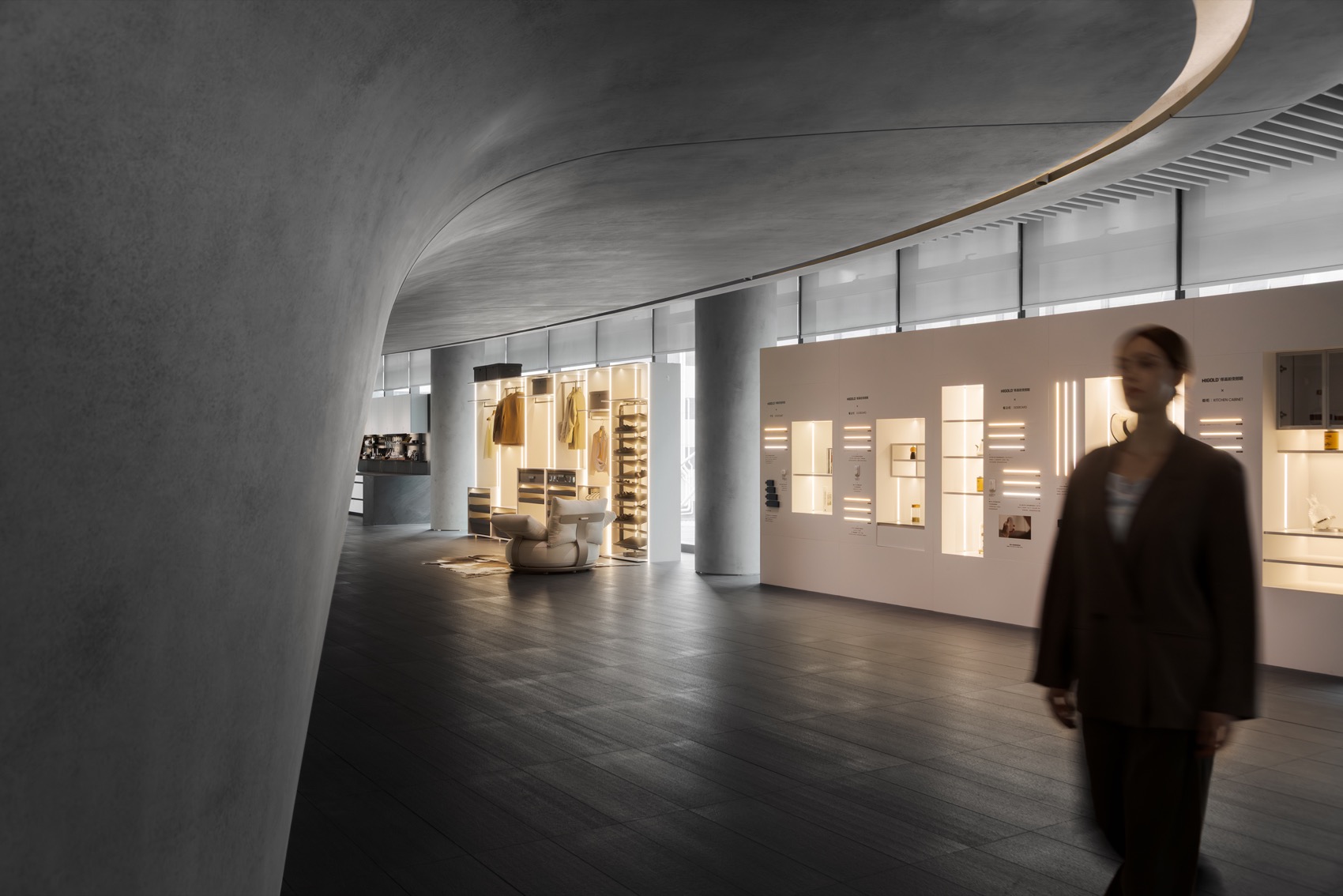

▼展示场景与休憩区域相结合，Display Setting Combined with a Lounge Area ©WM Studio

03 / 建造：数字制模与手工回归
Construction: Digital Templates, Hand-Finished Form

在建造阶段，这种复杂的几何关系对工艺提出了极致挑战。这一巨构装置完全回归于手工艺的纯粹，采用了“数字制模+匠心手作”的混合建造模式： 我们先以镀锌板进行激光雕刻定位，建立起精确的物理模版；木工匠人再以此为基准，对每一根具有不规则曲度的竖向木条进行定制化切割与等距排列。我们通过对分缝间距的严苛把控，将理性的受力逻辑转化为视觉上的韵律感。

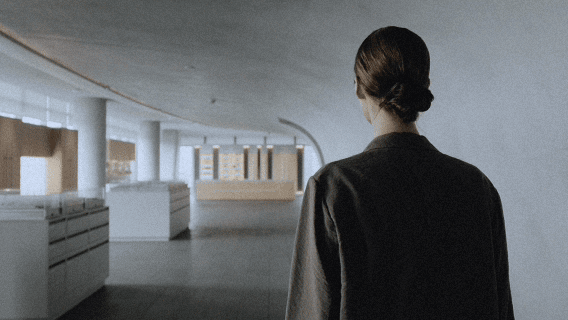

▼空间游览，Spatial tour © E Studio

During construction, the complexity of this geometry placed exceptional demands on fabrication. The installation was realized through a hybrid method that brought digital templating together with hand-finished craft. First, galvanized steel plates were laser-cut to create precise physical templates. Using these as guides, carpenters custom-cut each vertical timber strip and arranged them at even intervals. Every strip carries its own irregular curve. The carefully controlled gaps between them turn structural precision into visual rhythm.

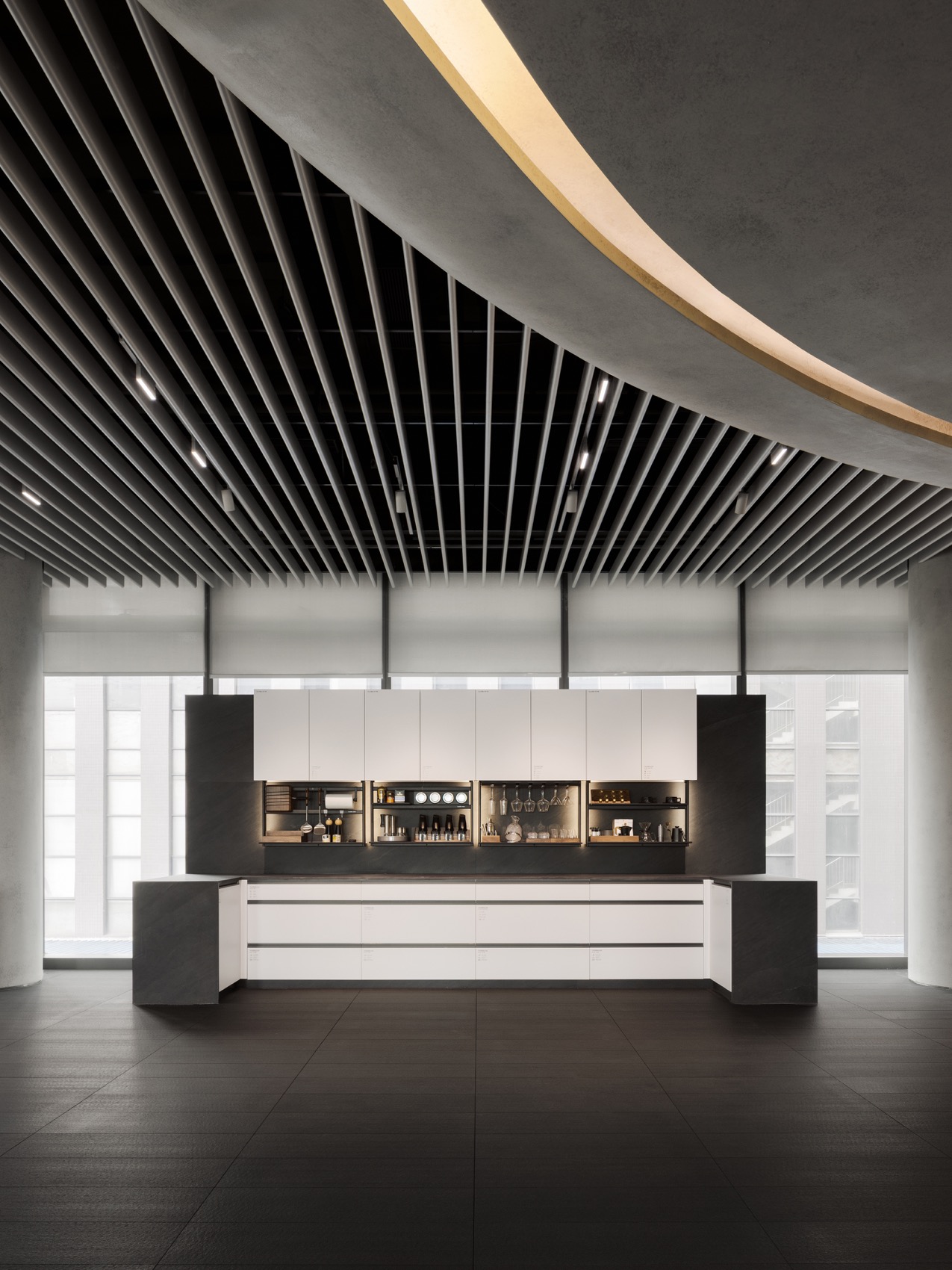

▼独立岛台展示厨房收纳系统，
Freestanding Island Display for Kitchen Storage Systems ©WM Studio

▼产品系统嵌入开放展陈空间，Product Systems Integrated into an Open Exhibition Space ©WM Studio

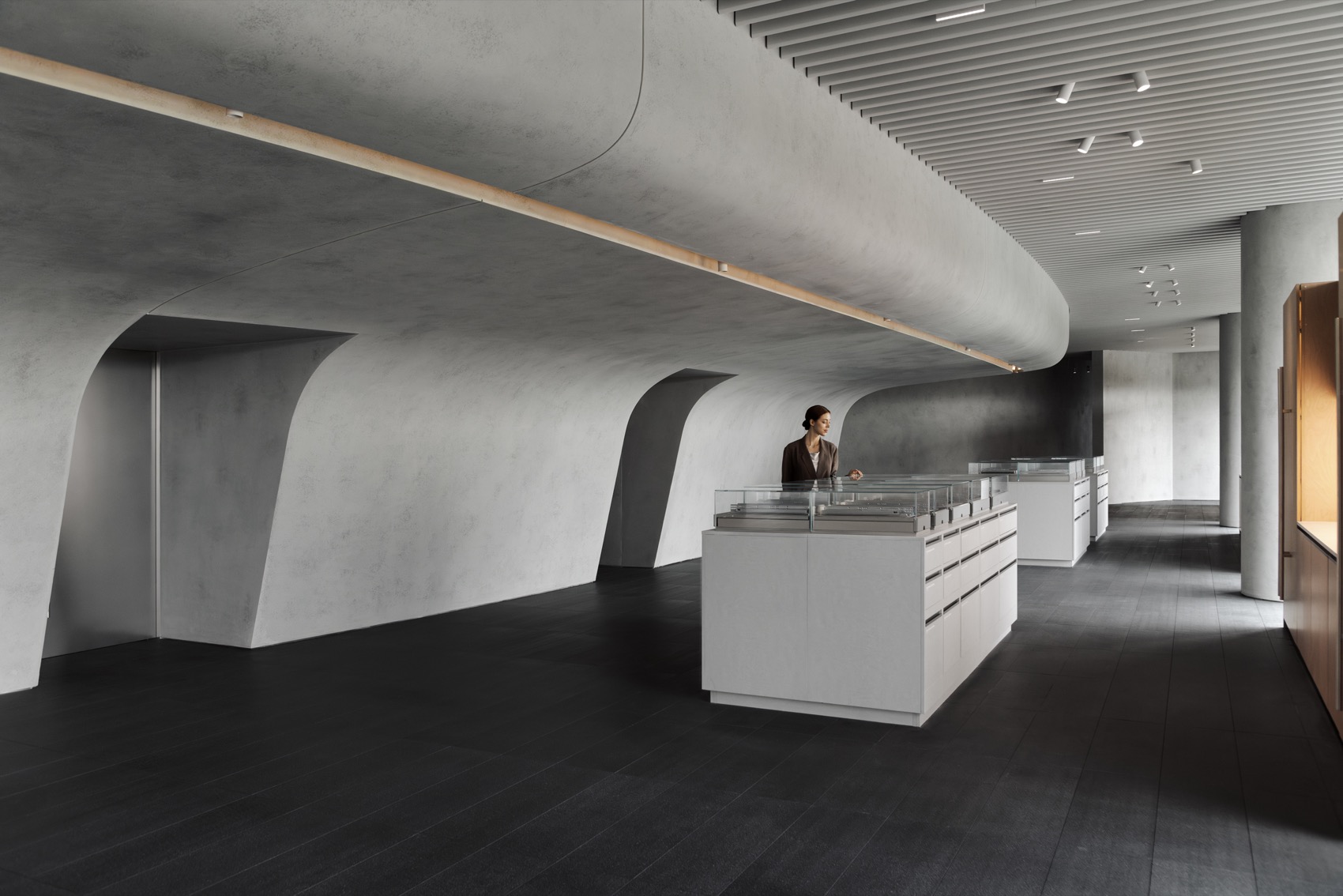

▼核心体块下形成连续展示界面，Continuous Exhibition Interface Beneath the Core Volume ©WM Studio

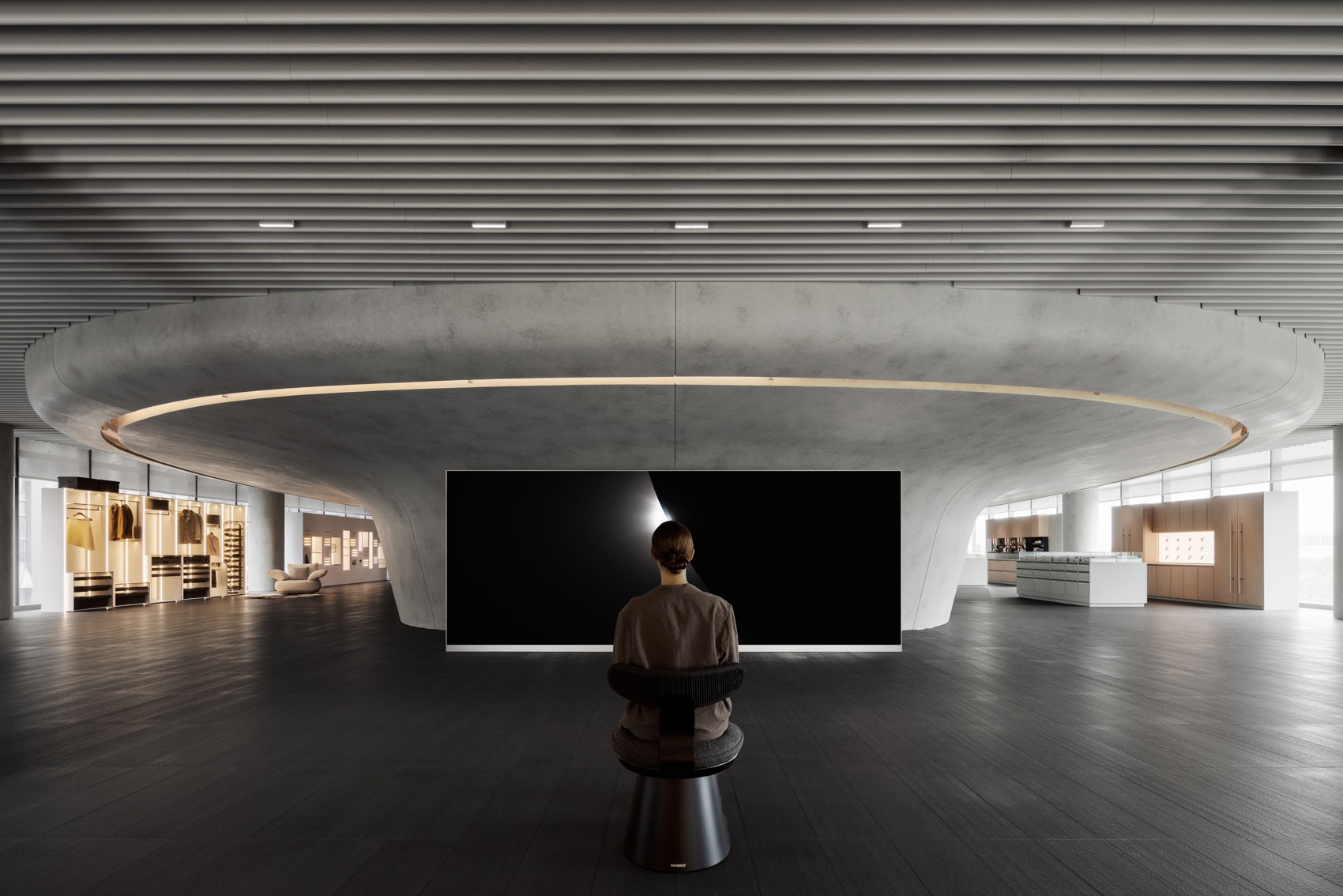

位于中轴线上的“剧场”作为装置的视觉重心，如同进入未知领域的通道，强化了进入“基地”的仪式感。它既呼应了悍高充满想象力的世界观，也传达了我们在空间建造上对精密工艺与几何美学的极致追求，让观者在探索的过程中，感受到一种原始而富有生命力的张力。

▼材质细节，Material details © E Studio

Set on the central axis, the theater becomes the visual heart of the installation. Like a passage into the unknown, it deepens the sense of ritual on entering the future base. It reflects HIGOLD’s imaginative worldview while expressing the project’s pursuit of precision, craft, and geometric beauty. As visitors move through the space, they encounter a tension that feels both primal and alive.

▼结构体系与展陈系统共同构成空间秩序，Structure and Display System Defining the Spatial Order Together ©WM Studio

▼核心筒底部形成穿行通道，Passageway Formed Beneath the Central Core ©WM Studio

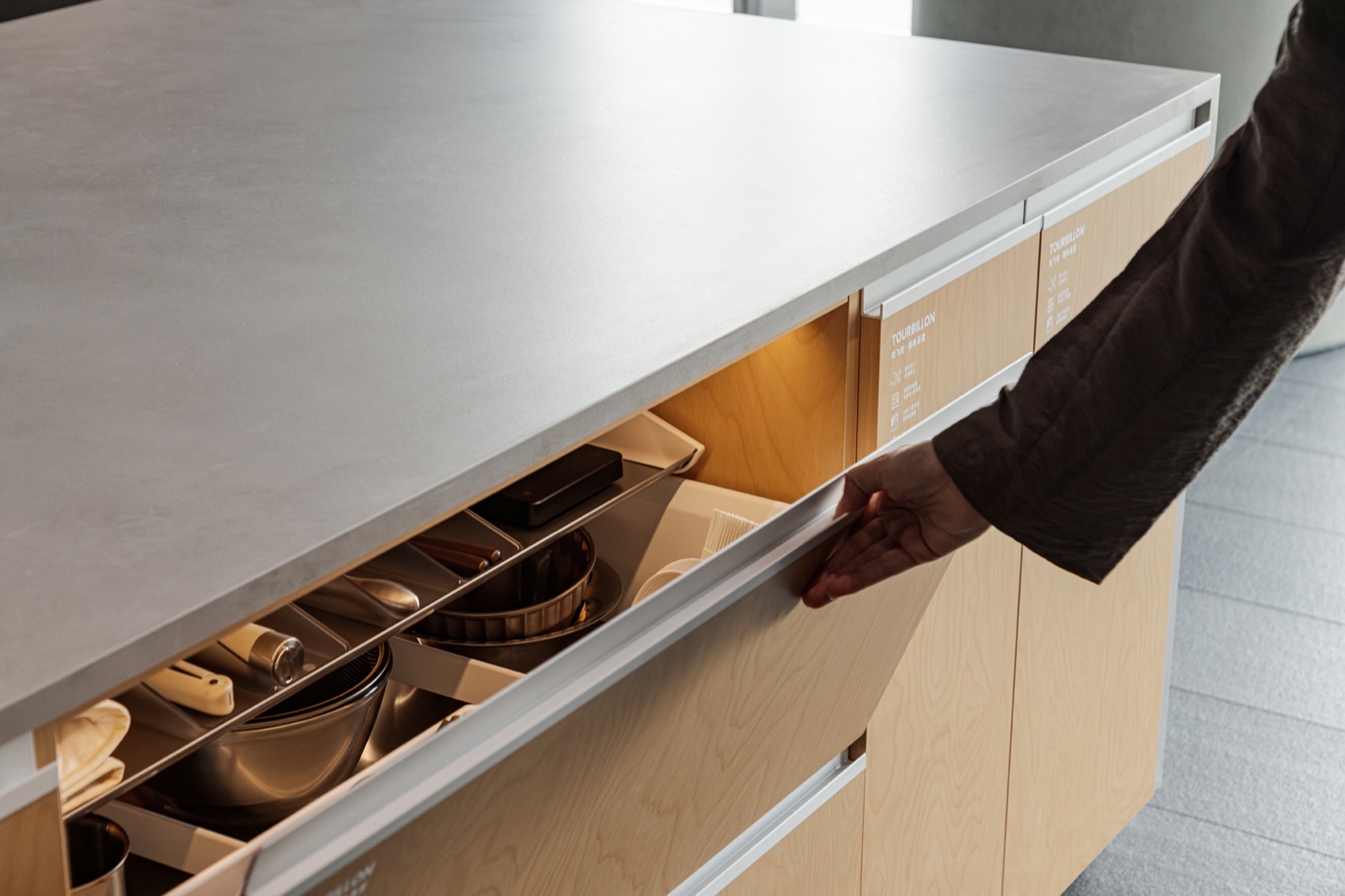

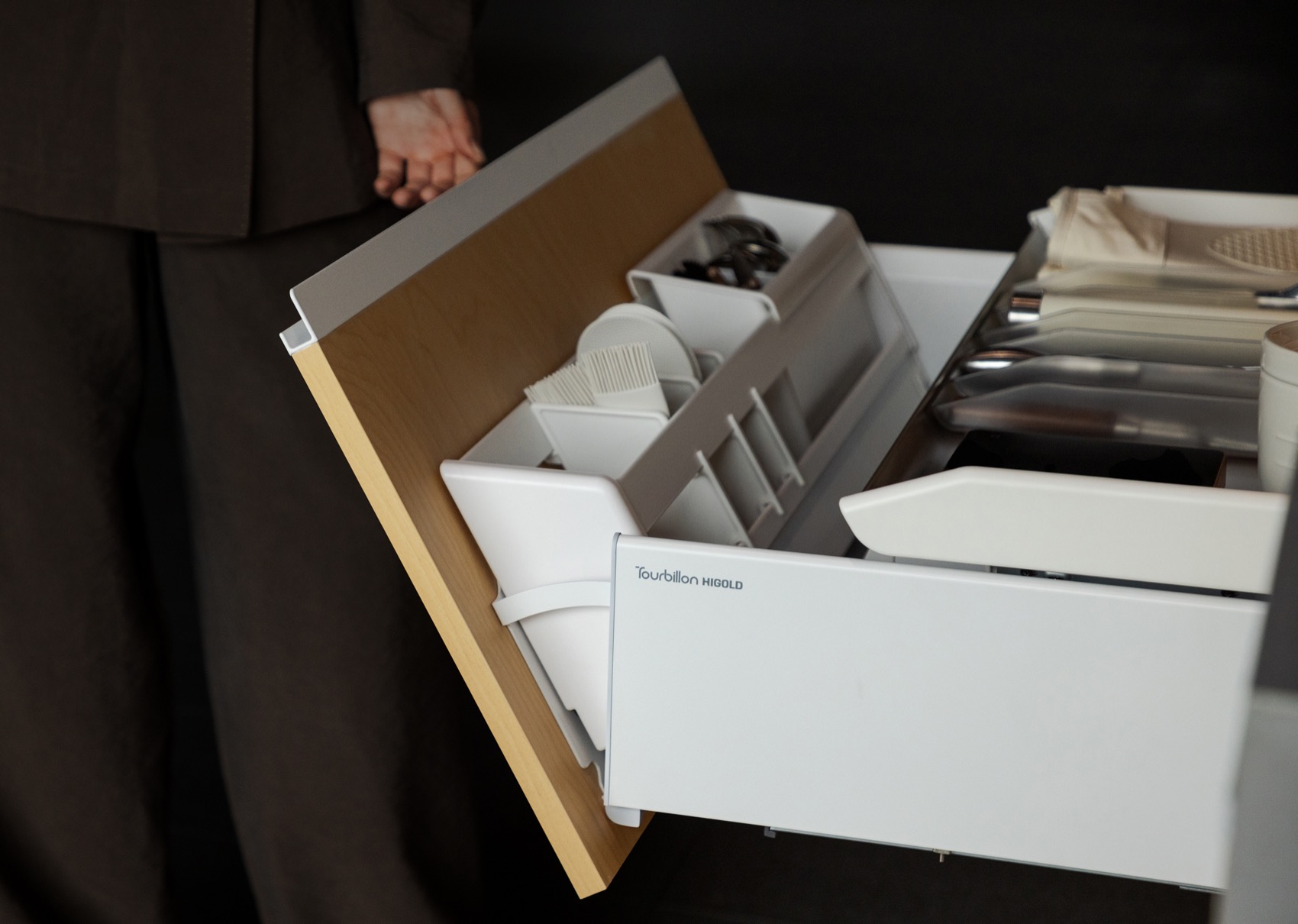

▼产品细节，Product details ©WM Studio

项目名称 Project Name：
HIGOLD 悍高未来馆
HIGOLD Future Pavilion
委托方 Client：
悍高集团股份有限公司
项目地址 Project Location：
广东佛山
面积 Area：
1000 sqm
落地时间 Completion Time：
3, 2026
空间设计 Interior Design：
E Studio 壹所
主持设计师 Lead Designers：
Fan,Junjian 范君健
Zhou,Xuanzhuo 周炫焯
设计团队 Design Team：
Hu,Yulong 胡裕龙
Huang,Chenxi 黄晨曦
Liu,Shuqi 刘淑琦
Deng,Changyi 邓嫦怡
Zhou,Jing周婧
摄影 Photography：
WM Studio
